IM403 Intermediate Playground Climbing Frame
Product Code: IM403
A four-deck intermediate playground climbing frame with two stainless steel slides and a fireman's pole exit. The IM403 layers play from a 0.57m entry deck up to a 1.475m upper deck in a 4.32m x 5.3m footprint. BS EN1176 certified, made in Yorkshire.
Engineered to last
IM403 Intermediate Playground Climbing Frame

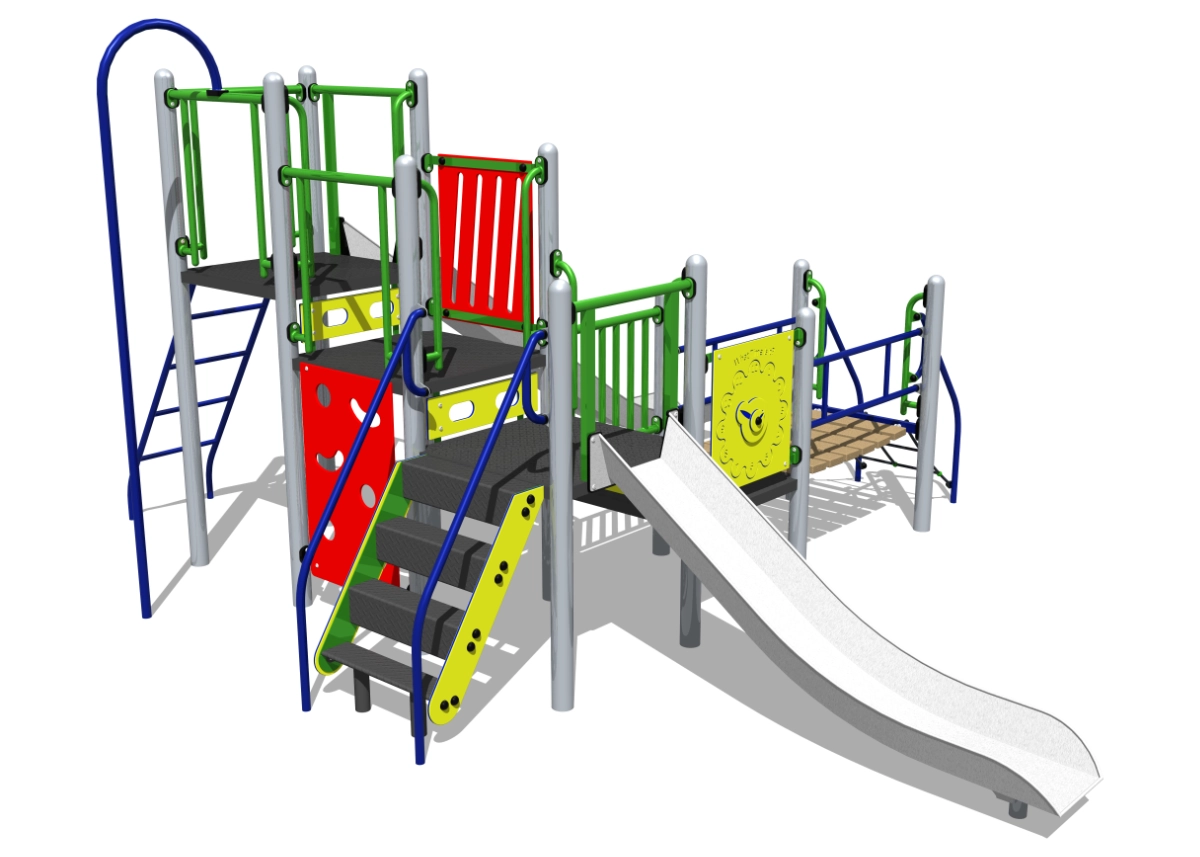

The IM403 packs four progressive deck levels into a single multi-play playground climbing frame. Deck heights of 0.57m, 0.9m, 1.175m and 1.475m give children a clear route from gentle entry play up to higher-confidence climbing, spread across a 4.32m x 5.3m footprint suited to larger primary school playgrounds.
The IM403 stands out with two one-piece pressed stainless steel slides on opposite sides of the frame, plus a fireman's pole exit with a curved top for older or more confident climbers. Other routes include a cargo net climber, an inclined ladder, a vertical-bar climbing panel and a wooden plank bridge between deck sections.
Manufactured in-house at our Yorkshire facility, the IM403 is built from heavy-gauge powder-coated steel with fully welded components and tamper-resistant Torx security fixings, certified to BS EN1176 in your choice of powder-coat colour.
- 88.9mm Ø x 3mm steel uprights with welded dome caps
- Fully welded or sleeved component construction throughout
- One-piece pressed stainless steel slide, fully welded
- Threaded inserts with Torx head security stainless steel fixings (tamper-resistant)
- Shot blast (SA 2.5) preparation, PZ 770 zinc-rich primer, powder-coated topcoat in a choice of colours
- Product code: IM403
- Overall dimensions (L x W x H): 4.32m x 5.3m x 2.63m
- Deck heights: 0.57m, 0.9m, 1.175m and 1.475m
- Free height of fall: 1.475m
- Minimum space required (L x W): 7.32m x 8.3m
- Impact area (1m x 1m tiles): 63
- Impact area (wetpour): 51m²
- Concrete pin kerbs (tiles/wetpour): 32.5 linear metres
- Heaviest part: 53kg
- Largest part: 3.25m (fireman’s pole)
- Compliance: BS EN1176
Every York Play climbing frame is designed and manufactured in the UK from heavy-gauge steel that can be repaired, re-coated and ultimately recycled. Specifying robust, locally made playground equipment reduces the carbon and waste cost of premature replacement and avoids the transport footprint of imported alternatives.
